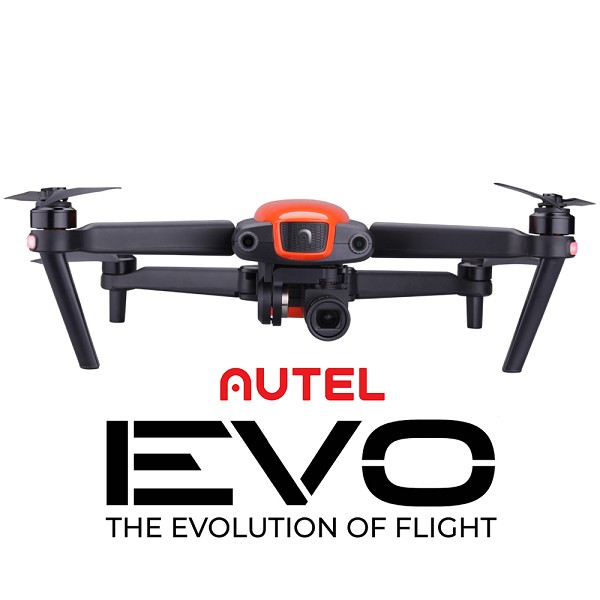

Autel EVO

INTELLIGENT FLIGHT
Rear and Front sensors let the Autel EVO fly with multiple intelligent flight modes and obstacle avoidance.

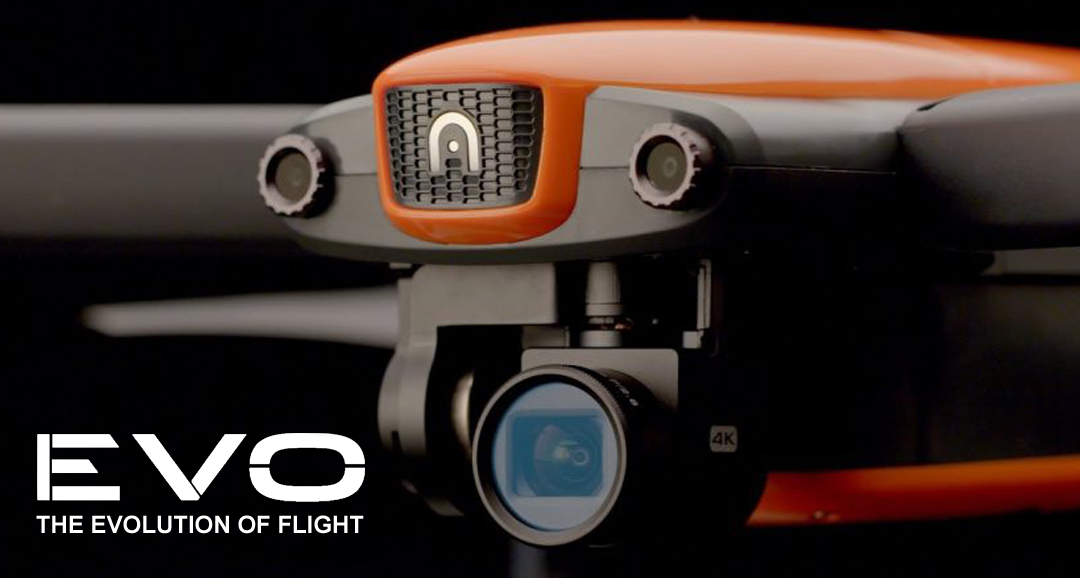

4K UHD CAMERA
The EVO is equipped with a 3-Axis gimbal, allowing EVO’s camera to record beautiful high definition footage at 60 Frames per Second!

OLED CONTROLLER
EVO’s controller has a built-in 3.3 inch OLED screen with live HD dual band transmission and a 7KM range for long distance flights.

Connect a compatible iOS or Android device with the AUTEL EXPLORER™ APP. Access autonomous flight modes such as:
Orbit, GPS Follow, Dynamic Track, Viewpoint, and Waypoint for mission planning. Customize settings to your personal preference.

AIRCRAFT
Hover Precision:
GPS+ Ultrasonic+IMU: Horizontal: ±1.5m, Vertical: ±0.2m;
Vision+IMU: Horizontal: ±0.1m, Vertical: ±0.1m
Max. Yaw Rate: 200 dps
Max. Inclination Angle: 35°
Max. Ascent/Descent Speed: Ascent: 5m/s Descent: 3m/s
Max. Horizontal Speed: 20 m/s (45 mph)
Diagonal Wheelbase: 338 mm
Propeller Size: 8.3" x 2.9"
Video Link Frequency: 2.4GHz~2.4835GHz
Receiver Frequency: 2.4GHz~2.4835GHz
Flight Modes: GPS · ATTI · LUDICROUS
Operating Environment Temperature: 32° F ~ 104° F (0° C ~ 40° C)
Storage Temperature: -10°C~40°C (14°F~104°F)
Weight (Battery & Propellers included): 863g (1.90lbs)

CAMERA
Operating Environment Temperature: 0°C~40°C (32°F~104°F)
Still Photography Modes: 12 MP Single shot
Burst shooting
Auto Exposure Bracketing (AEB) Time-lapse
Video Recording Modes: Normal · Picture In Video (PIV)
Max Frame Rates: 4K60, 2.7K60, 1080p120, 720p240
Max Field of View: 94°
Supported SD Card Types: Micro-SD, 4 GB - 128 GB, Class 10 or UHS-3
File Formats: FAT32/exFAT, Photo: JPG/DNG/JPG+DNG, Video: MOV/MP4 H.264 or H.265

REMOTE CONTROLLER
OLED Screen Brightness: 330 nits
Max Operating Time: 3 hours
RF Receiver Operating Frequency: 2.4GHz~2.4835GHz
Video Link Frequency: 2.4GHz~2.4835GHz
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature:
1 year: -20°C~25°C(-4°F~77°F)
3 months: -20°C~45°C(-4°F~113°F)
Max Control and Video Transmission Distance: 7km (4.3miles)
Transmission Power (EIRP): FCC: <=26 dBm CE: <=20 dBm
Operating Current/Voltage: 2A @ 3.6V
Battery: 6700mAH
Power Consumption: 7.2W
Weight (battery included): 370g (0.81lbs)

AIRCRAFT BATTERY
Battery Type: Rechargeable Lithium-Polymer Battery
Capacity: 4300 mAh
Battery Voltage Charging: 11.4 V
Charging Environment Temperature: 10°C~45°C (50°F~113°F)
Discharging Environment Temperature: -20°C~60°C (-4°F~140°F)
Storage Temperature & Humidity: Temp: -10°C~40°C (14°F~104°F) Humidity: 65±20%RH
Flight Time: Up to 30 minutes

1 - EVO aircraft
1 - Remote Controller
1 - Power Cable
1 - Charger
1 - Micro-USB Cable
1 - USB-C Cable
1 - Intelligent Flight Battery
1 - 32-GB MicroSD Card
1 - Shoulder Bag
6 - Propellers (3 Clockwise, 3 Counter Clockwise)
