- New battery connector with fail safe design
- New powerful flight control processor
- Designed for professional, commercial and governmental requirements
- New 3.5-7 km* long range OFDM module
- No data transfer to external servers
- High-precision, low-interference compass
- New 30 pin payload interface
- Mission planning on the computer or ST16E
- Stable and safe 6 rotor system
- Energy efficient and quiet operation
- ST16E with integrated 7” touch display, voice output and comprehensive DataPilot™ software
- HDMI signal directly from the ST16E to output the drone’s live image onto larger monitors
Added Security

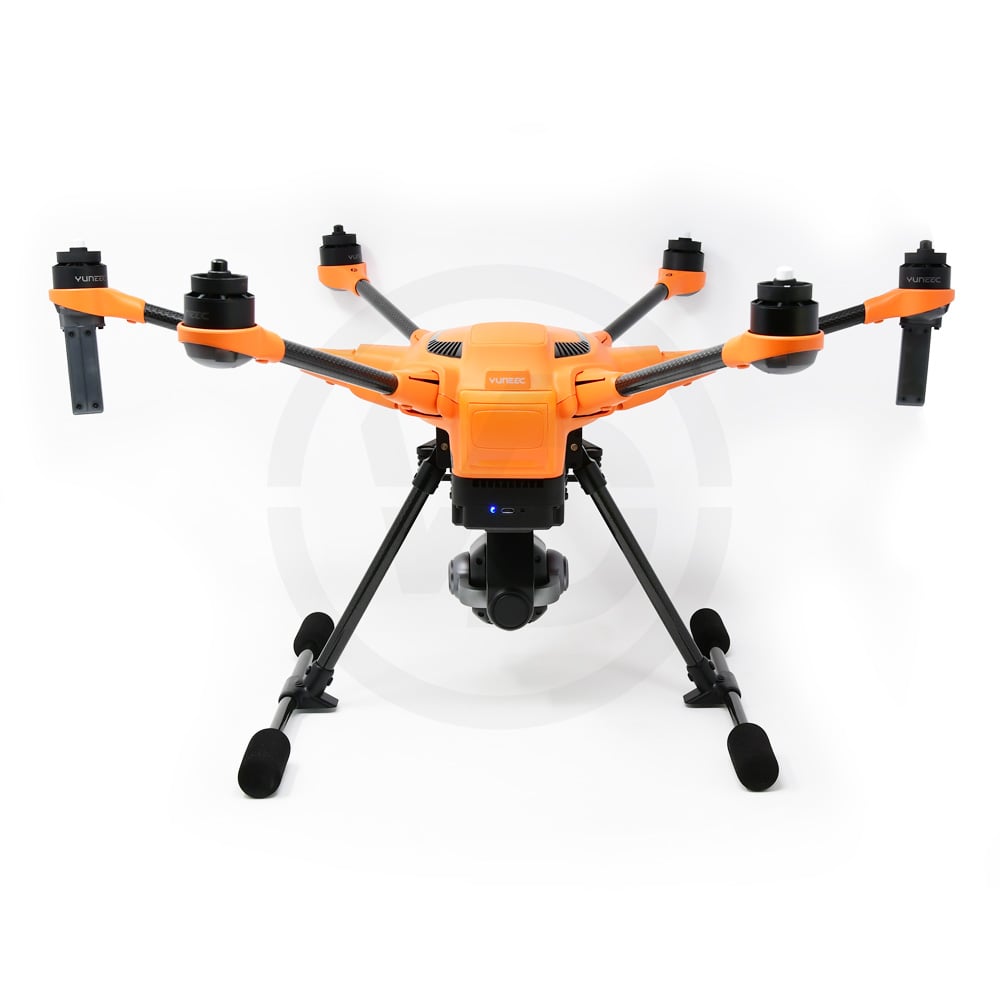

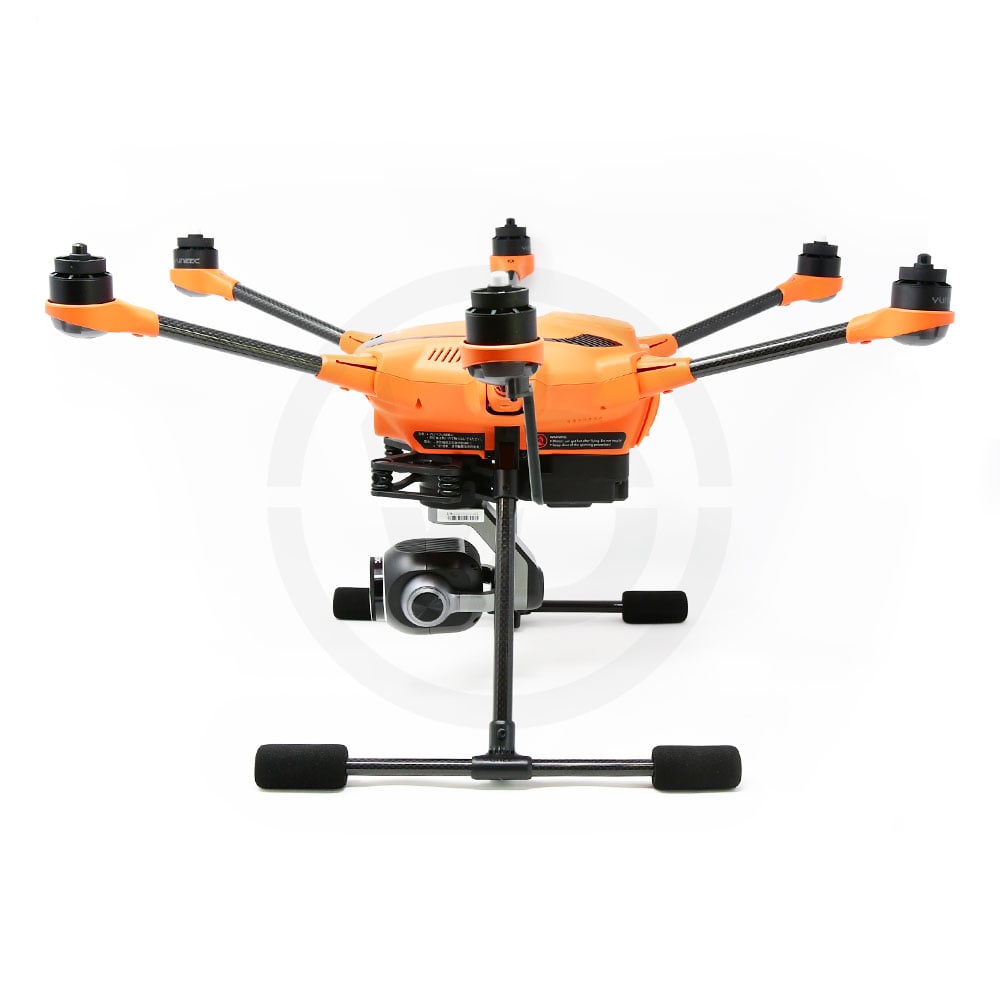

The Yuneec H520E was developed around demands for safety and functionality. The six rotor system allows for a safe and stable flight by ensuring that the H520E can continue to fly safely even if a rotor fails. The built-in ultrasonic sensors allow the H520E to detect obstacles and avoid collisions, while the battery issues warnings when the voltage is too low and changes to a fail-safe function if necessary. In addition, the H520E comes equipped with a redundant control signal, a return home and a geo fence function, which ensures that the drone does not move beyond a radius specified by the user.
Updated DataPilot2.0 System
The Yuneec DataPilot™ is a comprehensive software solution for planning waypoint and survey missions. DataPilot™ is fully integrated into the hardware and software of the H520E and enables users to efficiently and consistently get the information they need. Using DataPilot™, you can collect the data needed to create orthomaps, 3D scans, crop data imagery, in the field or on the desktop for repeatable, recallable aerial flight paths. The DataPilot™ software also allows for storage of maps from many map providers for access in areas with no connectivity, and provides tools for precise way-point placement even in areas where no updated maps are available.
*Photogrammetry software is needed to process data and build 2D and 3D models.
Secure Your Data
The Yuneec H520E has been developed as a closed system, its technical design prevents communication with third party servers. Communication only takes place between the drone, the payload and the ST16E ground station controller. Log files are stored locally in the drone and are only required by Yuneec for service purposes in the event of a guarantee. There is no involuntary data transfer to servers. Neither flight data nor images, videos or log files are forwarded to external servers and remain in your possession. Thus, your data is optimally protected.
ST16E Ground Station Controller
The Android-based ST16E ground station controller is equipped with a fast Intel quad-core processor and OFDM support. Thanks to the OFDM support, the live image transmission can be expanded up to 1.7 miles. The integrated 7 inch display with touchscreen ensures precise and intuitive operation of the Yuneec H520E and shows all flight information as well as the live image from the camera. The live image can also be transferred to a larger monitor via the HDMI output of the ST16E.
Versatile Payload Options with new X-Connector
Thanks to its multiple load options, the Yuneec H520E can be easily adapted to different areas of application. Replace sensors in a matter of seconds, downtime is minimized and productivity is improved. This means that one gimbal camera combination can be exchanged for another without power cycling the airframe.
E90X Camera
- 1-Inch Sensor
- Increased Sensitivity in Low-light Environments
- Orthomapping, 3D Modeling and Close-up Inspections
- 23mm Lens Equivalent
- Advanced H2 Signal Processing
- Ultra HD 4k Video at 60 fps
- Lens Adapter Threaded to fit 40.5mm Standard Filters for Flexibility and Convenience
- Low Distortion/Minimal Lens Dispersion
- Hot-Swap Capable Payload
- Continuous 360 Degree Rotation
Capture Highly Detailed Images
The E90X is designed for law enforcement applications such as accident recreation, search and rescue operations and for 3D mapping/modeling. In addition, broadcast and production professionals will appreciate the dramatic aerial shots afforded by the E90X’s high frame rate and accurate color. The E90X’s 1-inch 4K resolution sensor, combined with the H520E best in- class airframe stability, provides for extremely high quality imaging. The result is superior high-resolution 2D ortho or 3D maps, precision volumetrics, and 3D surface models.
Detailed Data for Deep Analysis
Precise accuracy, quality data, and efficiency all combine in the H520E, allowing for informed decision-making, awareness of challenging terrain, and other obstacles to construction. Pre-construction surveys and site topography may be slow, expensive, and can stand in the way of rapid decision-making processes. With topographic maps and 3D models, stakeholders can visualize and plan, providing for informed decisions and plans of action. Autonomous flight allows for repeated flights that may be layered to determine any changes in the work site and provide comparisons over time. Coupled with auto-gridding found in the DataPilot™ software, the Yuneec mapping solution provides for efficient planning, execution, and evaluation of data in many post-flight analytic or stitching software tools from premiere Yuneec partners such as Pix 4D™, etc.
The Professional Solution for Law Enforcement Applications
Clear accident scenes faster, gather incident forensic evidence on-scene while it’s clean, empower your team to safely handle dangerous situations with an aerial view, and cover large search areas in minutes instead of hours. With the E90X camera and H520E aircraft, Accident Scenes may be captured for 2D or3D scene archive, suitable for any post-accident investigation. Using industry tools such as Pix4D™, PhotoModeler™, or other professional software applications, agencies are able to investigate, determine, and reexamine accident scenes with granular detail. Imagine having the capability of a helicopter within the trunk of an officer’s vehicle. The Yuneec H520E offers a tool which revolutionizes how police departments engage in a variety of public safety scenarios. An aerial view in a public safety situation offers a safe vantage point to monitor hostile situations and plan resource allocation or precision tactics before engaging the situation. Attach the CGOETX, and the H520E becomes an aerial tool assisting in inspection of chemical spills, suspicious packages, or tracking a suspect.
Tactical Tool that Assists Officers in High Intense Situations
Clear accident scenes faster, gather incident forensic evidence on-scene while it’s clean, empower your team to safely handle dangerous situations with an aerial view, and cover large search areas in minutes instead of hours. The H520E Hexacopter aerial system has been developed specifically for commercial use. This sUAS enterprise solution features a proven, stable, long flight time airframe, with multiple payload options and advanced DataPilot™ mission planning software.
Accident Scene Recreation
With the E90X camera and H520E aircraft operated by Yuneec DataPilot™, accident scenes may be captured for 2D or3D scene archive, suitable for any post-accident investigation. Using industry tools such as Pix4D™, PhotoModeler™, or other professional software applications, agencies are able to investigate, determine, and reexamine accident scenes with granular detail.
Crime Scene Information Gathering
Too often, contamination of a crime scene becomes weakest link in crime scene investigation. Deploying an sUAS system prior to entering a scene allows for accurate capture of data without touching the scene itself. High quality camera systems with embedded GPS data enables evidence-gathering to be captured and examined before the crime, accident, or fire investigators or first-responders have entered the area.
Quickly Change Cameras Without Powering Down
All Yuneec commercial camera systems are hot-swap capable which minimizes down time and improves productivity.
Yuneec H520E Applications
Law Enforcement:
The Yuneec H520E is perfect for accident scene reconstruction, crime scene mapping, as an “eye in the sky” for crowd control, intelligence gathering, or monitoring targeted areas. The Yuneec H520E empowers Law Enforcement officers to quickly record an accident scene in 2D or 3D, for later assembly of data for court appearances, reporting, or archiving. Camera systems with embedded GPS data enables evidence gathering to be captured and examined before fire investigators or first-responders have entered the area.
Inspections:
Vertical structures can be inspected safely and efficiently with the precise flight behavior of the H520E. Long focal lengths allow users to fly further back from the object being viewed, without compromising image quality or depth. DataPilot™ can store missions that require weekly or monthly re-flight for purposes of comparison, failure evaluation, or deterioration studies. The safety improvement and cost reduction with sUAS inspection are staggering in comparison.
Search and Rescue:
The Yuneec H520E enhances safety at a contaminated scene, speeds rescue and recovery. Firefighters appreciate the ability to “see” through smoke and rapidly identify hot spots using thermal imaging, and the ability to gain a birds-eye view of operations on a large scene. In addition, the drone can be used for scouting the route ahead for obstacles, finding victims, photographing remote crash sites, terrain mapping, crash site monitoring or for improving communication.
Site Mapping:
Pre-construction survey, topographical measurements, and project progress - The Yuneec H520E is designed to fly repeatable, perfect-placement flight over construction sites, providing not only measurable and demonstrable project data, but also helping to identify shrink points, at-risk areas, or security breach points. Autonomous flight allows for repeated flights that may be layered to determine changes in the work site and provide comparisons over time.
Compatible Payloads
E90X:
- 20 megapixel / 4K resolution at 60 frames per second
- 1“ CMOS sensor
- Digital zoom up to 8x
- 23 mm lens with low distortion
- 30 pin X-connector
- 320° rotation of the gimbal for perfect image stabilization
- Ideally suitable for professional film applications, 3D mapping / modeling and search and rescue
E30ZX:
- 30x optical zoom + 6x digital zoom
- Autofocus
- Defogging
- 1080p video resolution
- 30 pin X-connector
- 2.55 s zoom speed (from wide to tele)
- Ideal for law enforcement and inspection tasks
E10TX:
- Thermal imaging and residual light camera with FLIR® Boson sensor
- 320 x 256 Thermal Resolution
- Supports DataPilot and mission planning
- Dual video stream
- 30 pin X-connector
- 320° rotation of the gimbal for perfect image stabilization
- High-value for inspection, law enforcement, fire fighting, search & rescue and construction tasks
E10TVX:
- Thermal imaging and residual light camera with FLIR® Boson sensor
- 640 x 512 (E10TvX) Thermal Resolution
- Supports DataPilot and mission planning
- Dual video stream
- 30 pin X-connector
- 320° rotation of the gimbal for perfect image stabilization
- High-value for inspection, law enforcement, fire fighting, search & rescue and construction tasks
H520E
Flight Time: 25-30 min (Optimal Conditions)
Battery: 4S-6200mAh LiPo
Take Off Weight: 4.1lbs (1860 g) Without Camera
Diagonal Length: 520 mm (20.5 in Without Blades)
Dimensions: 21.7x19x12.1in (551x482x309 mm)
Max Speed: 44.7 mph (20 m/s)
Max Ascent Speed: 11.1 mph (5 m/s)
Max Descent Speed: 6.7 mph (3 m/s)
Max Flight Height: 1,640 ft (500 m)
Max Angular Velocity: 120°/s
Motors: 720kV
Charger: SC4000-4H
Operating Temperature: 32°F - 104°F (0°C - 40°C)
Storage Temperature: 14°F - 122°F (-10°C - 50°C)
ST16E Ground Station
Screen: 7 inch Android Touch Screen
Operating System: Android ™
Channels: 16
*Transmission Distance: Up to 1.7 Miles
Battery: 3.6V 8700mAh 31.32Wh Li-Ion
Frequency: 2.4 GHz
Videolink Frequency: 2.4 GHz
Videolink Resolution: 720 p
Operating Temperature: 32°F - 104°F (0°C - 40°C)
Video Outputs: HDMI
Obstacle Avoidance System
Sensor: Ultrasonic (Front)
Flight Speed: 8.9 mph (4 m/s)
Operating Environment: Height > 4.9 ft (1.5 m)
Distance to Obstacles < 16 ft (< 5 m)
E90X Camera
BURST SPEED: (PHOTO)
[email protected] /
[email protected] /
[email protected]
COLOR SENSITIVITY: RGB
COMPRESSION BIT RATE: 100MBPS
COMPRESSION TYPE: AVC/HEVC
DNR: 2D FILTER
EFFECTIVE PIXELS: 20 MEGAPIXELS
FOV: DFOV 90.3 ± 3°
FOCAL LENGTH: 23MM
FRAMERATE: 24/25/30/48/50/60/120
FSTOP RANGE: F2.8 ± 5%
GIMBAL AXIS: 3
GIMBAL CONTROL ACCURACY: ± .02°
GIMBAL MAX. CONTROL RANGE: TILT: -90° - 30° PAN: 360° LIMITLESS
GIMBAL MAX. CONTROL SPEED: TILT: 50°/S PAN: 50°/S
ISO RANGE: 100 - 12800
MAX VIDEO RESOLUTION: 4K 60FPS
MINIMUM SD CARD CLASS: 10 U3
MTF 104LP/MM, CENTER: 0.6, CORNER : 0.4
SENSOR SIZE: 1 INCH CMOS
SHUTTER SPEED: 1/8000 - 8S
SHUTTER TYPE: ROLLING
SNR: ISO100, SNR 36DB
STORAGE TEMPERATURE: 10°C - 30°C
WEIGHT: 330G
Compatible Payloads
E90x (YUNE90XUS)
CGOETx (YUNETXUS)
E30Zx (YUNE30ZXUS)
E10Tx (YUNE10TXUS
E10Tvx (YUNE10TVXUS)
E20Tvx
