A One-Size-Fits-All Solution
- Multi-payload compatibility
- RTK and PPK compatible
- New battery connector with fail safe design
- New powerful flight control processor
- Designed for professional, commercial and governmental requirements
- New 2-4 mile* (3.5-7 km*) long range OFDM module
- No data transfer to external servers
- High-precision, low-interference compass
- New 30 pin payload interface
- Mission planning on the computer or ST16E controller
- Stable and safe 6-rotor system with 5-rotor failsafe
- Energy efficient and quiet operation
- ST16E controller with integrated 7” touch display, voice output and comprehensive DataPilot™ software
- HDMI signal directly from the ST16E to output the drone’s live image onto larger monitors
Added Security
The Yuneec H520E was developed around demands for safety and functionality. The 6-rotor system allows for a safe and stable flight by ensuring that the H520E can continue to fly safely even if a rotor fails. The built-in ultrasonic sensors allow the H520E to detect obstacles and avoid collisions, while the battery issues warnings when the voltage is too low and changes to a fail-safe function if necessary. In addition, the H520E comes equipped with a redundant control signal, a return home and a geo fence function, which ensures that the drone does not move beyond a radius specified by the user.
Updated DataPilot2.0 System
The Yuneec DataPilot™ is a comprehensive software solution for planning waypoint and survey missions. DataPilot™ is fully integrated into the hardware and software of the H520E and enables users to efficiently and consistently get the information they need. Using DataPilot™, you can collect the data needed to create orthomaps, 3D scans, crop data imagery, in the field or on the desktop for repeatable, recallable aerial flight paths. The DataPilot™ software also allows for storage of maps from many map providers for access in areas with no connectivity, and provides tools for precise way-point placement even in areas where no updated maps are available.
*Photogrammetry software is needed to process data and build 2D and 3D models.
Secure Your Data
The Yuneec H520E has been developed as a closed system, its technical design prevents communication with third party servers. Communication only takes place between the drone, the payload and the ST16E ground station controller. Log files are stored locally in the drone and are only required by Yuneec for service purposes in the event of a guarantee. There is no involuntary data transfer to servers. Neither flight data nor images, videos or log files are forwarded to external servers and remain in your possession. Thus, your data is optimally protected.
ST16E Ground Station Controller
The Android-based ST16E ground station controller is equipped with a fast Intel quad-core processor and OFDM support. Thanks to the OFDM support, the live image transmission can be expanded up to 1.7 miles. The integrated 7 inch display with touchscreen ensures precise and intuitive operation of the Yuneec H520E and shows all flight information as well as the live image from the camera. The live image can also be transferred to a larger monitor via the HDMI output of the ST16E.
Versatile Payload Options with new X-Connector
Thanks to its multiple load options, the Yuneec H520E can be easily adapted to different areas of application. Replace sensors in a matter of seconds, downtime is minimized and productivity is improved. This means that one gimbal camera combination can be exchanged for another without power cycling the airframe.
Law Enforcement:
The Yuneec H520E is perfect for accident scene reconstruction, crime scene mapping, as an “eye in the sky” for crowd control, intelligence gathering, or monitoring targeted areas. The Yuneec H520E empowers Law Enforcement officers to quickly record an accident scene in 2D or 3D, for later assembly of data for court appearances, reporting, or archiving. Camera systems with embedded GPS data enables evidence gathering to be captured and examined before fire investigators or first-responders have entered the area.
Inspections:
Vertical structures can be inspected safely and efficiently with the precise flight behavior of the H520E. Long focal lengths allow users to fly further back from the object being viewed, without compromising image quality or depth. DataPilot™ can store missions that require weekly or monthly re-flight for purposes of comparison, failure evaluation, or deterioration studies. The safety improvement and cost reduction with sUAS inspection are staggering in comparison.
Search and Rescue:
The Yuneec H520E enhances safety at a contaminated scene, speeds rescue and recovery. Firefighters appreciate the ability to “see” through smoke and rapidly identify hot spots using thermal imaging, and the ability to gain a birds-eye view of operations on a large scene. In addition, the drone can be used for scouting the route ahead for obstacles, finding victims, photographing remote crash sites, terrain mapping, crash site monitoring or for improving communication.
Site Mapping:
Pre-construction survey, topographical measurements, and project progress - The Yuneec H520E is designed to fly repeatable, perfect-placement flight over construction sites, providing not only measurable and demonstrable project data, but also helping to identify shrink points, at-risk areas, or security breach points. Autonomous flight allows for repeated flights that may be layered to determine changes in the work site and provide comparisons over time.
H520E RTK KEY FEATURES
- Fully integrated to YUNEEC H520E
- Compatible with all existing Yuneec H520E camera payloads
- Faster and more precise mapping (e.g. complex surveying, inspections, mapping, 3D displays)
- RTK (Real Time Kinematic) module for high accuracy relative positioning: 1 cm + ppm horizontal / 1.5 cm + ppm vertical
- Keep cm precision in even GNSS challenging environment (e.g. between high buildings)
- 5 Hz update rate of position, velocity and time
- Support signals of up to 3 GNSS constellations
- All data including raw GNSS data and real time solution can be stored on board - ready for PPK (Post Processed Kinematics)
- Network RTK or Base Station not included
The system works with two components, the RTK module on board the Yuneec H520E and a base station. In under 30 seconds the Yuneec H520E RTK can reach centimeter-level accuracy - even while operating in challenging GPS conditions (with respect to the base station). The system can also be operated with a network RTK reference station (Network RTK through third party provider, needs an internet connection, additional fees may apply) for absolute global centimeter-level accuracy in the event you don't want to use a base station,
The Yuneec H520E RTK system is an important part of commercial applications where the highest precision is required. Using the H520E RTK while 3D mapping will provide significantly lower image overlaps which means using less photos, resulting in a shorter flight. In addition, inspections can be much closer to the desired object because the drone's location will be precise down to the centimeter. This precision is also a great advantage when comparing several images taken on different days, for example to document a construction progress.
The RTK module allows for precise positioning, even in challenging environments and is fully integrated into the H520E's hardware and software. This means that you still have the full range of functions of the award-winning DataPilot software. All data, including raw GNSS data, can be logged on board. Thus, the system is also already for PPK (Post Processed Kinematics).
RTK MODULE
- Smallest Heading Solution
- Compact SMD packaging
- All-Constellation Multi-Frequency
- 0.2°/1m baseline Dual Antenna Heading
- Centimeter level RTK
- 30*40 mm, SMD packaging
- Supports BDS B1/B2+GPS L1/L2+GLONASS L1/ L2+GALILEO E1/E5b+QZSS L1/L2
- DUAL-RTK Engine, independent master and slave antenna RTK solution
- RTK: 1cm +1ppm(H); 1.5cm+1ppm(V)
- Up to 20Hz Low-latency output of positioning and heading
Current OEM Payloads

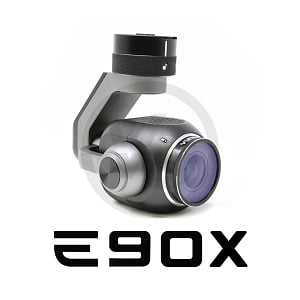

E90X:
- 20 megapixel / 4K resolution at 60 frames per second
- 1“ CMOS sensor
- Digital zoom up to 8x
- 23 mm lens with low distortion
- 30 pin X-connector
- 320° rotation of the gimbal for perfect image stabilization
- Ideally suitable for professional film applications, 3D mapping / modeling and search and rescue
CGOETx:
- 160x120 FLIR Lepton thermal sensor
- Supports DataPilot and mission planning
- Cost effective thermal imaging
- 30 pin X-connector
- Ideal for law enforcement and SAR applications
- Dual sensor camera (RGB and thermal)

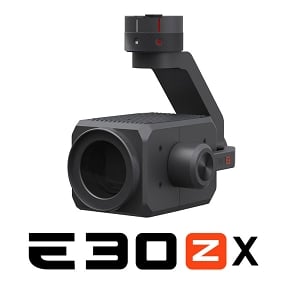

E30ZX:
- 30x optical zoom + 6x digital zoom
- Autofocus
- Defogging
- 1080p video resolution
- 30 pin X-connector
- 2.55 s zoom speed (from wide to tele)
- Ideal for law enforcement and inspection tasks
E10T34X:
- Thermal imaging and residual light camera with FLIR® Boson sensor
- 320 x 256 Thermal Resolution
- Supports DataPilot and mission planning
- Dual video stream
- 30 pin X-connector
- 320° rotation of the gimbal for perfect image stabilization
- High-value for inspection, law enforcement, fire fighting, search & rescue and construction tasks
E10TV32X:
- Thermal imaging and residual light camera with FLIR® Boson sensor
- 640 x 512 (E10TvX) Thermal Resolution
- Supports DataPilot and mission planning
- Dual video stream
- 30 pin X-connector
- 320° rotation of the gimbal for perfect image stabilization
- High-value for inspection, law enforcement, fire fighting, search & rescue and construction tasks

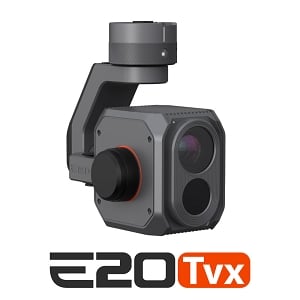

E20Tvx:
- Radiometric thermal imaging
- 640 x 512 Thermal Resolution
- Supports DataPilot and mission planning
- Dual video stream
- 30 pin X-connector
- 320° rotation of the gimbal for perfect image stabilization
- High-value for inspection, law enforcement, fire fighting, search & rescue and construction tasks
Easy for Beginners - Precise Enough for Experts

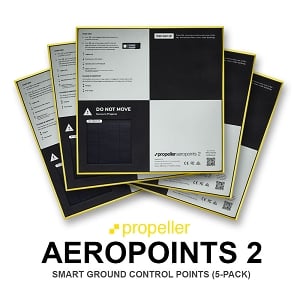

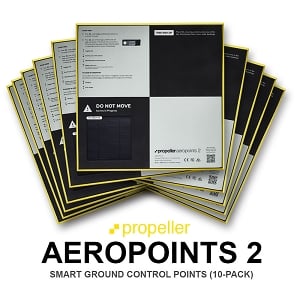

Propeller AeroPoints™ are high-precision smart ground control points (GPCs) that were thoughtfully designed for drone beginners - yet precise enough for survey experts. Forget hours with bases and rovers - just lay out your AeroPoints and let them do the work. Propeller AeroPoints are a simple solution to improve data accuracy.
Propeller AeroPoints come equipped with the following features and capabilities, allowing you to gather accurate data with built-in ease-of-use.
Durable, Lightweight Design
Gone are the days of lugging around complex surveying equipment. Users can easily transport the Propeller AeroPoints from job site to job site with ease due to their lightweight, compact design.
One-Button Operation
One-button operation means you don’t need to be a GPS expert to use AeroPoints, just lay them out - and they’ll do their job. AeroPoints provide ease-of-use, and accuracy that will drastically improve your datasets.
Wireless Upload Feature
AeroPoints upload their ground control data wirelessly to your user portal from whenever you are. Never worry about processing your own data again, and save yourself a lot of valuable time in the process.
Mobile App Based Management
A dedicated AeroPoints app delivers real-time diagnostics about your ground control hardware and makes configuration setup quick and easy.
How Propeller AeroPoints Work
Each Propeller AeroPoint includes a solar panel and plug-in charger, battery, GPS, and Wi-Fi inside a fully-sealed, lightweight shell. The real value of AeroPoints comes from their flexibility—use them for ground control, checkpoints, or even as a base station.
Sites on a Global Coordinate System
With AeroPoints, there is no more need for bulky and expensive survey gear. You can now show up to the jobsite and quickly disperse the AeroPoints before flight.
Site with a Permanent Survey Mark
Calibrate your Propeller AeroPoints with a permanent survey mark, including State Marks - by placing an AeroPoint over it and uploading the mark's position with your data.
Sites with a Base Station
Ensure your drone data has the same reference point as your other data by importing a RINEX file with your Propeller AeroPoints. This is great for construction sites with machine control.
Sites with a Local Grid
Align drone data with machine control, design, and other site data by uploading your Trimble or Topcon calibration file to calibrate Propeller AeroPoints with your local grid coordinates.
Comprehensive, Accurate Data
Propeller AeroPoints provide a comprehensive breakdown for all Ground Control Points. File types include kml, csv and pdf.
Automatically Refine Your Data
Being in the Propeller Corrections Network means your AeroPoints can be processed and corrected automatically. Check your coverage in the map below.
One-Button Operation
Just place and press. The indicator light will display the AeroPoint's current status.
Solar Powered
Low maintenance. The AeroPoint charges itself while running. Featuring a powerful LiFePO4 battery for a long storage life.
Rugged and Durable
The Propeller AeroPoints are water-resistant, and the aerodynamic design prevents shifting and aids water runoff.
Charging Port
Charge up your AeroPoints in just three hours using the built-in charging port. Featuring a 100-hour battery life.
In-Built GPS
The AeroPoints record positioning data every 5 seconds.
Lightweight
3.3lb (1.5kg). Each set includes a carry bag for easy transport.
Large Memory
Store data from 100-plus flights before upload is required.
Strategic Design
Optimized for recognition by processing software.
