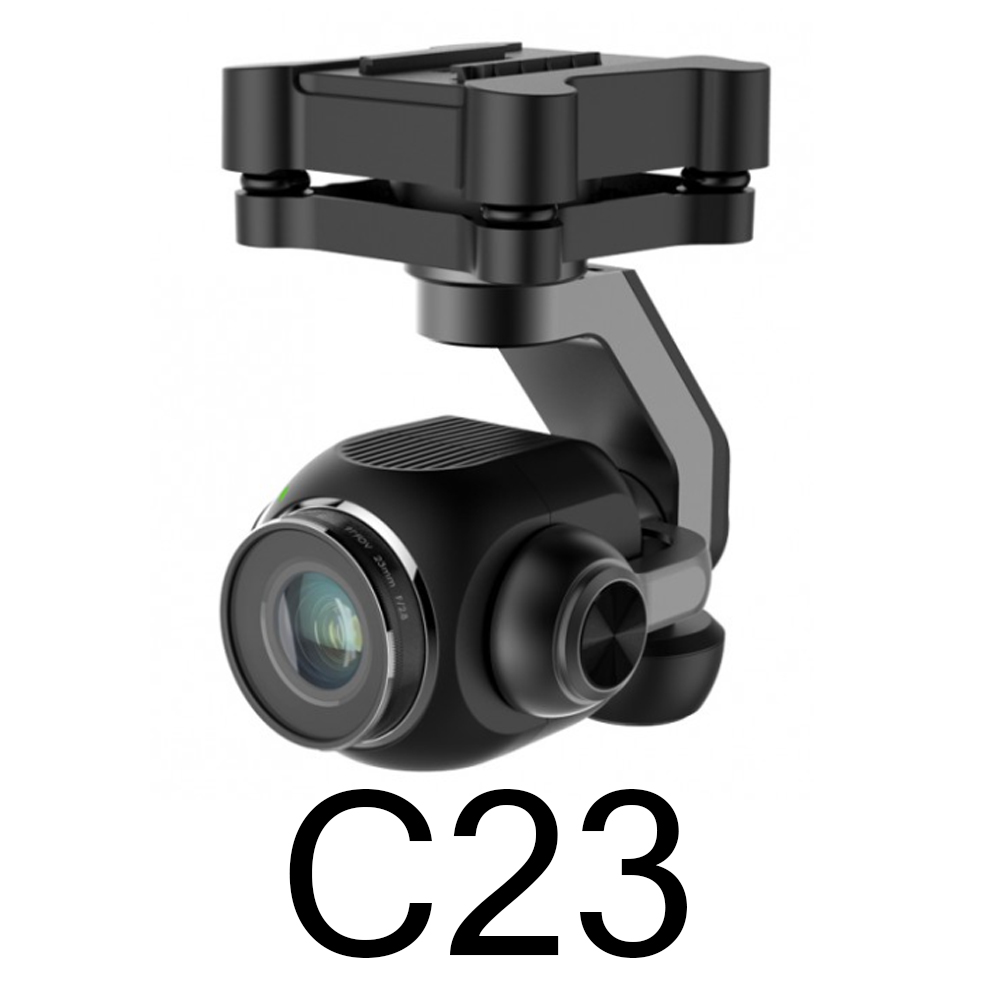

The Yuneec C23 Camera features razor-sharp 20 megapixel photo resolution, sensational 60 frames per second at 4K video and a large light-sensitive 1” image sensor. These are the key details of the new camera that make it ideal for videos and photography.
Q: Why is it so hard to find ND filters for this camera? I see there is an adapter included but I imagine it makes the camera lens heavy, is that correct?
Asked by: nick triantafillou
- 5/1/2019
Q: Will the yuneec c23 camera fit on the original typhoon h?
Asked by: jeffrey folk
- 4/17/2019
Q: Has this camera been released for the standard H model? Early on it was supposed to be able to be fitted to the H as well as the H+, however, the users groups were saying that it was not going to happen.
Asked by: William Hargrave
- 3/18/2019
Q: Does this work with the original Typhoon H?
Asked by: Mark Davini
- 12/22/2018
- 3-axis gimbal camera with 1” CMOS sensor
- Available in two versions: C23 for Typhoon H (YUNTYHC23EU) or Typhoon H Plus (YUNC23EU)
- Up to 4K video resolution at 60 frames per second
- 20 megapixel photos
- Burst, Interval and Panorama photo mode
- Endless 360° rotation of the gimbal
- Digital video downlink in HD
- Complete control of the camera via the ST16/St16S remote control
- Intelligent flight modes for automated camera flights
The intelligent flight modes of the Typhoon H Plus ensure a variety of tracking shots – completely automated. Fly around objects, let your copter follow you by using the Follow Me mode or use any other of the integrated auto flight modes. Your shots always remain smooth and stable thanks to the integrated gimbal.
With the new C23 camera for the Typhoon H Plus you can record videos up to 4K at 60 frames per second. Choose between additional video resolutions in H.264 or H.265 codec. Photos with up to 20 megapixels can be recorded in 3: 2, 4: 3 or 16: 9 format and you have various photo features such as panorama, time-lapse or continuous shooting available.
You control and tilt the C23 camera directly via the ST16/ST16S remote control for the Typhoon H Plus. Moreover, all camera settings such as resolution, format, exposure or white balance mode can be made via the remote control. You can also watch the live image of the camera on the screen of the transmitter during the flight.
Stabilized over 3 axes, the C23 gimbal works with a precision of ± 0.02 ° and ensures smooth and stabilized images. The C23 gimbal is capable of unlimited 360 yaw axis rotation. This unique feature, when combined with the retractable landing gear of your Typhoon H Plus, provides the operator with full 360 unobstructed camera view and the ability to continuously pan the camera without yawing the airframe.
DIMENSIONS: 115 x 80 x 130 mm
WEIGHT: 350 g
SENSOR SIZE: 1" CMOS
EFFECTIVE PIXELS: 20 Megapixel
CAMERA LENS: F2.8
VIEW FIELD: 91°
ISO RANGE: 100 - 6400
SHUTTER SPEED: 4 - 1/8000s
PHOTO FORMAT: JPEG, JPEG+DNG
VIDEO FORMAT: MP4
PHOTO RESOLUTION: 3:2 (5472x3648) / 4:3 (4864x3648) / 16:9 (5472x3080)
VIDEO RESOLUTION: H.264 - 4096x2160 & 3840x2160 & 2720x1530 (24/25/30/48/50/60fps) / 1920x1080 & 1280x720 (24/25/30/48/50/60/120fps)
VIDEO RESOLUTION: H.265 - 4096x2160 & 3840x2160 (24/25/30fps) / 2720x1530 (24/25/30/48/50/60fps) / 1920x1080 & 1280x720 (24/25/30/48/50/60/120fps)
PHOTO MODES: Single, Burst (3/5/7), Interval (5/7/10/15/20s), Panorama
WHITE BALANCE: Lock, Daylight, Cloudy, Automatic, Fluorescent, Incandescent, Sunrise
EXPOSURE MODE: Auto Exposure, Manual Exposure
EXPOSURE COMPENSATION: ± 3.0°
GIMBAL AXES: 3
ANGULAR VIBRATION RANGE: ± 0.02°
CONTROL RANGE: Pitch: -90 - 15°/ Pan: 360° limitless
STORAGE TEMPERATURE -10°C - 50°C
SD CARD: 128 GB
COMPATIBLE COPTER: C23 for Typhoon H Plus: YUNC23US
1 - Yuneec C23 Camera for the Yuneec Typhoon H + (Plus)
