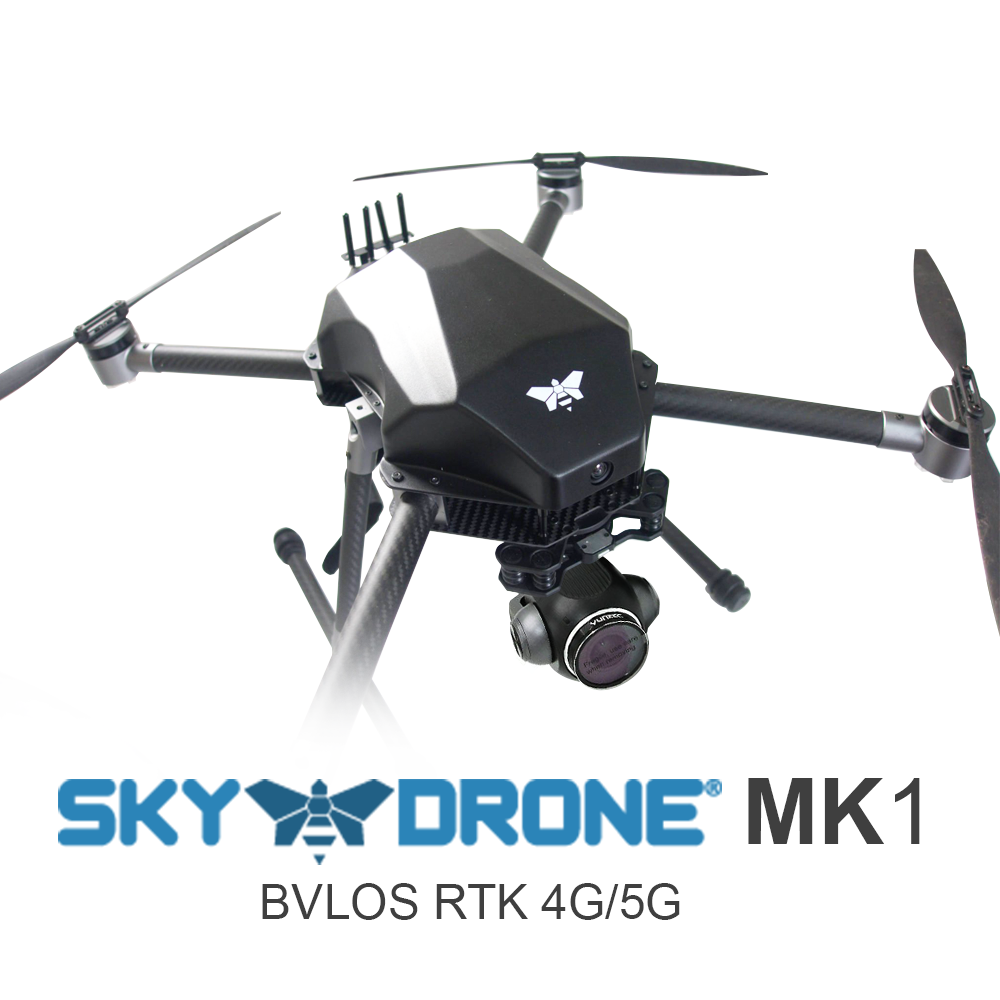

Sky Drone MK1 BVLOS 4G/5G RTK Surveillance Drone (MK1-001)

NOTEABLE FEATURES
- Mission planning through ground control station
- Multivendor payload options
- Takeoff, fly and in-flight control via ground control station
- Live-video (FullHD) transmission in real-time
- Emergency intervention via ground control station
- Connection loss scenarios (hover, RTH)
- Additional payload options (e.g. payload release system)
- Remote photo taking trigger
- Default high-res 4k Yuneec E90X 20MP camera
- FLARM traffic awareness and collision avoidance (optional)
- Live video broadcast (via 3rd party software like OBS)
- High precision positioning via Real Time Kinematics (RTK)

APPLICATIONS
- Law Enforcement
- SAR Search & Rescue
- Security Surveillance
- Infrastructure Monitoring
- Broadcast video
- Aerial Surveillance and Mapping

DEFAULT PAYLOAD
The Sky Drone Mk1 is compatible with a variety of payloads. This includes the Yuneec E10TX, E10TvX, E30ZX and E90X. The Sky Drone Mk1 default camera is the Yuneec E90X.

HIGH SECURITY ENCRYPTION
The Sky Drone Mk1 is end-to-end encrypted using AES256 encryption - a FIPS 197 approved cryptographic algorithm. Communication between the drone and ground control station is secured with government-grade encryption including command & control commands, telemetry and video imagery data. As such Datagram Transport Layer Security (DTLS) and Secure Real-Time Protocol (SRTP) both use AES256.

SIM CARD AND MOBILE CARRIER REQUIREMENTS
For the Sky Drone Mk1 to be able to communicate with the ground control station, the customer needs to obtain a data-enabled SIM card from his/her mobile network carrier. As stated above, the Sky Drone Mk1 supports a variety of 4G and 5G frequency bands, which are used across the world in all countries. Customers are still recommended to double-check with their mobile network carrier the frequency support in the areas Sky Drone Mk1 is planned to be deployed at.

In short: All the customer needs besides the Sky Drone Mk1, is a data-enabled SIM card.

FLIGHT CONTROLLER AND SOFTWARE
UAV / Drone: Sky Drone Mk1
Flight Controller: PX4 FMUv5 compatible

Command & Control Protocols: MAVLink
MAVLink Dronecode Standard
mavlink.io dronecode.org

Groundstation Software: Sky Drone FPV Client Software (included)

System:
Minimum: Intel i5, 4 GB RAM
Recommended: Intel i7, 8 GB RAM, dedicated graphics card.

Operating System:
Windows 7/8/10
Linux: Ubuntu 14.04 or newer
MacOS (soon)
Android (soon)
iOS (soon)

Command & Control Groundstation:
Sky Drone Groundstation provides a TCP interface, which is compatible with:
QGroundControl (qgroundcontrol.com)
Mission Planner (ardupilot.org/planner)
Dronekit (dronekit.io)
Tower (Android App)
DroidPlanner 2 (Android App)
and others...


4G/5G CONNECTION SPECIFICATIONS
BVLOS Transmission Range: Unlimited

In any area with mobile network coverage, data and video transmission is available; incl. international roaming areas.

Video Transmission Resolution: Full HD (up to 1080p 30fps)

Antenna: Dual external antennas included

Typical Glass-to-Glass Latency: <150ms

Typical Data Consumption on 4G/LTE/5G:
10 minutes of streaming consumes:
Full HD at 6mbit/s: 450MB
HD at 2mbit/s: 150MB
Low quality at 50kbit/s: <4MB

Supported 5G NR:
Category: 5G NR Sub-6
Frequency Bands:
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

4G fallback supported

Supported 4G / LTE:
Category: Cat-20

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

Data Speeds:
Peak Download Rate: 4.5 Gbps
Peak Upload Rate: 660Mbps

Private LTE Networks:
3.5GHz local private networks (CBRS band)
Certified by the FCC for CBRS private networks to provide reliability, security, flexibility, and cost savings

Approvals:
Planned Carrier: AT&T; (FirstNet), docomo, LGU+, Telstra

Regulatory: FCC, GCF, KC, PTCRB, EU RED, JATE/Telec


TECHNICAL DETAILS
Classification: EU UAS Class C2

Endurance:45 min (with standard camera payload)
Maximum Ceiling: Up to 5000 meters (16400 feet)

Cellular Technology:
5G
Category: 5G NR Sub-6
Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28,
n38, n40, n41, n48, n66, n71, n77, n78, n79
4G (fallback):
Category: Cat-20
Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13,
B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32,
B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Approvals:
Planned Carrier: AT&T; (FirstNet), docomo, LGU+, Telstra
Regulatory: FCC, GCF, KC, PTCRB, EU RED, JATE/Telec

Cameras: Yuneec E90X, CGOETX, E30ZX, E10TX and E10TVX Series

Cellular Data Consumption: HD video: ~900MB per hour

Encryption:
End-to-end encrypted using AES256.
Secure Real-Time Protocol (SRTP)
Datagram Transport Layer Security (DTLS)

Speed: 80 km/h (fast mode); 45 km/h (position mode)

Battery: 12Ah, 26.1V LiPo; Operating Temperature: -10ºC to 50ºC

1 - Sky Drone MK1
1 - Yuneec E90X Camera
