Key Features

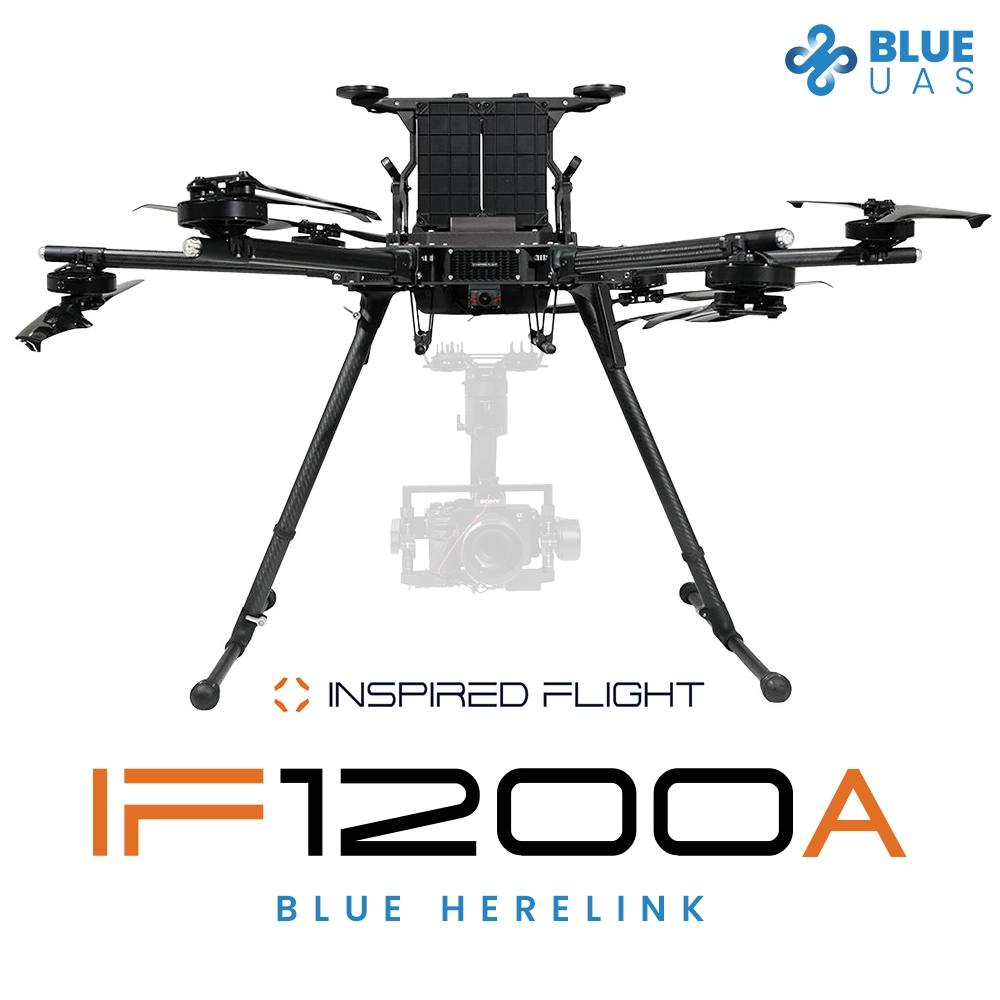

The Inspired Flight IF1200A boasts the following features and capabilities:
- 43 minute max flight time
- 19.1lb max payload capacity
- 56mph max flight speed
- 23 knot max wind resistance
The Ultimate Aerial Tool
Discover the exceptional features and capabilities of the Inspired Flight IF1200A, designed for advanced industrial applications.
Universal Payload Interface
Facilitates communication between the payload, ground control, and the flight controller, streamlining your workflow and optimizing productivity across virtually any mission.
HD FPV camera
Elevate your visual experience with the IF1200 HD FPV camera. Navigate aerial mapping, photogrammetry missions, utility inspections, and more with unparalleled clarity and precision.
Integrated Remote ID
Integrated Remote ID for out of the box FAA-Compliance.
SAFE Drone™
In the event of a motor failure, the IF1200 will seamlessly transition to a secure manual flying mode & swiftly alert the operator to initiate an immediate landing.
Dual Latching GPS Structure
Two GPS units ensure accuracy while also functioning as a convenient carrying handle when batteries are not installed.
Dual Propeller System
With larger, overlapping propellers, the aircraft retains a more compact frame. The alternating clockwise and counterclockwise propeller configuration increases the aircraft’s efficiency.
Universal Mounting Rail
12 Diameter mm booms mounted 150mm away from each other center to center allows for a sturdy and versatile mounting solution.
Integrated Payload Options
The IF1200 offers a variety of integrated payloads chosen specifically for each industry. This includes optical, EO/IR, LiDAR, Multispectral, Geophysical, and Custom options.
Phase One iXM-100
Experience the pinnacle of UAV-based imaging with the Phase One iXM-100, a groundbreaking medium format camera engineered for unparalleled performance in aerial missions. The iXM-100MP boasts cutting-edge technology, featuring medium format sensors with backside illumination (BSI) for superior high-light sensitivity and dynamic range. This innovative camera platform is fast, responsive, and robust, offering a range of high-resolution lenses from 35mm to 300mm for exceptional image quality.
Breakthrough Camera Platform
The iXM-100MP is a high-productivity metric camera designed for seamless integration with the IF1200 UAV platforms. Equipped with specially designed RSM lenses, these cameras deliver superior aerial imaging quality and flexible operation for a wide range of applications.
RSM Lenses for iXM Cameras
The Phase One iXM-100MP cameras are complemented by five specially designed RSM lenses, ranging from 35mm to 300mm AF, optimized to match the pixel and sensor size of the iXM cameras. These lenses offer high optical resolution, enabling new possibilities for inspection and mapping applications. The integrated electronic global shutter ensures high capture speed, ideal for various flight conditions.
Storage and Connectivity
The Phase One iXM-100MP camera supports super-fast storage capabilities with USB-C and 10G Ethernet connectivity, making them compatible with large UAVs and aircraft. Full camera control is possible over a wireless link, allowing users to adjust settings such as ISO, shutter speed, aperture, focus distance, and upload flight plans.
P3 Drone Payload
The Phase One P3 Payload is a versatile solution designed for efficient and safe inspection of critical infrastructure with a UAV. Compatible with MAVLink integration, the P3 Payload allows for seamless integration with existing or future drone setups.
Custom Gimbal Solutions
As an industry leader in custom gimbal solutions, we enable your ideas with our unique expertise and state-of-the-art technologies. Our customized gimbal solutions are designed to integrate Phase One iXM-100 medium format cameras into leading drone platforms like the IF1200, providing unmatched inspection productivity for asset owners and service providers worldwide.
Phase One iXM-100 Features:
- Smart triggering of the camera by waypoints, fixed distance, or fixed time
- Support for mission planning applications for waypoint missions
- Geo-tagging of all images' location and gimbal position
- Remotely set target distance
- Dual remote controllers for UAV pilots and camera operators
- Industrial-grade build for tough use in harsh environments
- Includes RSM 80mm Lens and Gremsy P3 Gimbal
Sony a7R IV
Introducing the Sony a7R IV, a full-frame mirrorless camera that redefines photographic excellence. With capabilities once reserved for medium-format cameras, this compact powerhouse combines expressive prowess with remarkable speed, enhancing your creative vision and productivity.
The Highest Level Burst Speed In It's Class
Featuring the highest level burst speed in its class, the a7R IV maintains shooting speeds of up to 10fps with a mechanical shutter (up to 8fps in live-view continuous shooting mode). This allows you to capture decisive moments with stunning detail, thanks to its 61.0 MP high-resolution imaging capability.
High Precision In Low Light
Experience high precision in low light with advanced AF algorithms that ensure focus accuracy at light levels as low as EV-3. The 'Focus Priority in Aperture Drive' option enhances focusing accuracy in dim lighting and when the aperture is stopped down.
Key Features:
- 15-stop dynamic range, 14-bit uncompressed RAW, ISO 50 to 102,400
- Up to 10fps continuous shooting at 61MP with AE/AF tracking
- Incredible autofocus with 567 phase-detection / 425 contrast AF points
- Real-time Tracking and Real-time Eye AF for human, animal, and movie
- APS-C crop mode delivers stunning 26.2MP high-resolution images
- 5.76 million-dot UXGA OLED Tru-Finder electronic viewfinder
- 5-axis in-body image stabilization with a 5.5-step shutter speed advantage
- High-speed 2.4 and 5GHz Wi-Fi / FTP transfer and wireless PC remote
- Super speed USB Type-C (USB 3.2 Gen 1 compatible) and Micro USB
- 4K movie with full pixel readout with no pixel binning in Super 35mm
- Multi Interface Shoe with digital audio for high-quality sound
- 4 or 16-shot Pixel Shift Multi Shooting for unmatched resolution
- Secure, versatile, and fast dual UHS-II SD media card slots
- Long-lasting Z-series battery
- S-log2 / 3 workflow plus instant HDR with Hybrid Log-Gamma (HLG)
- Robust magnesium alloy body with dust and moisture-resistant design
- Enhanced BIONZ X image processing engine with front-end LSI and DRAM
- 3-inch 2.35 million-dot tiltable LCD screen with touch control
- Multi-selector direct AF point selection / AF-ON button
Sony ILX-LRI
Combining the sensor and resolution of its mirrorless counterparts, the Sony ILX-LR1 Industrial Camera is tailored to capture stunning 4K imagery while remaining light enough to be mounted onto drones or industrial equipment. Weighing under 9 oz, its simplified design features an interchangeable E-mount for versatile lens options. Despite its compact size, it boasts numerous controls, HDMI and USB-C outputs, an SD card slot, and options for terminal power and remote control.
Designed for Ease of Integration
The ILX-LR1 is significantly lighter than conventional Alpha cameras, making it ideal for tasks like inspection, investigation, surveying, and mapping. Its slim, viewfinder-less form factor and integrated controls make it suitable for a variety of industrial applications.
High-Resolution Imaging
Equipped with a full-frame back-illuminated Exmor R CMOS sensor boasting approximately 61MP, the camera offers exceptional sensitivity, resolution, and dynamic range. Powered by the BIONZ XR image processing engine, it delivers natural gradations and realistic colors with low noise for both stills and movies. This high resolution and low noise capability enables detailed imaging, revealing fine details like small scratches and cracks, with a wide ISO range of 100-32000 ensuring adaptability to most daylight conditions.
Lightweight and Versatile
Design Designed for industrial applications where a conventional camera body is unnecessary, the ILX-LR1 features a lightweight and compact design. Its reduced weight allows for longer flight times and compatibility with smaller drones, facilitating quick completion of high-altitude shooting jobs. The camera's 3 fps continuous shooting capability is ideal for drone mapping, enabling rapid completion of high-altitude shooting tasks.
Dedicated Remote Software Development Kit (SDK)
The Sony Camera Remote SDK enables remote control of the ILX-LR1 menus and functions from custom software applications. Integration of an API allows remote control of camera settings, shutter release, live view monitoring, and more from a computer. This integration enables user applications to link unique image IDs with drone position data in post-processing.
Easy Mounting and Compatibility
Accepting DC power for extended operation without battery changes, the ILX-LR1 features power and recording indicator lamps for visual status checks. Its Power and Control Terminal provides power supply, exposure output, focus, and trigger from a single terminal for instant response in remote applications.
To prevent accidental changes to settings, the camera is equipped with a LOCK switch. Screw mounts on each of its six surfaces, along with micro-HDMI, top-lock USB-C, and grouped button controls, maximize mounting options.
Wide Selection of E-Mount Lenses
As an interchangeable lens camera, the ILX-LR1 is compatible with a wide range of E-mount lenses. Users can select the most suitable lens for any shot, including medium telephoto lengths. Utilizing a 61MP full-frame image sensor, a single high-altitude picture can replace several lower-resolution images from other cameras.
Key Features
- High-resolution 61MP full-frame Exmor R CMOS sensor
- Powered by the BIONZ XR processing engine
- Lightweight body specifically designed for drone use
- Supports Sony SDK for remote application control
- UHD 4K60 8-bit H.265/264 XAVC recording capability
- Equipped with an SD card slot for storage
- Features locking USB-C and micro-HDMI output ports
- Offers S-Log3/S-Cinetone profiles and more for enhanced versatility
- Includes a power/control terminal block input for flexible power options
Sentera 65R
The Sentera 65R, the first ultra-high-resolution precision sensor designed specifically for seamless integration with drone systems, including RTK systems.
More Pixels, Faster Capture
With a ground sampling distance of 0.45cm/pixel, enhance efficiency and accuracy by capturing more pixels per image. This allows you to cover more ground significantly faster than any other camera available.
Built for Drone Integration
The 65R is engineered for easy integration with drones, focusing on ultra-high-resolution aerial image capture to support critical decisions in survey and mapping applications.
Tailored Data Output
Whether you need an RGB mosaic, a detailed digital surface model (DSM), or in-depth analytics, the 65R can easily generate the data required for your specific use case, whether it's surveying, modeling, or mapping.
Resolution & Lens
- Gipxel GMAX3265
- Resolution: 9344 x 7000
- HFOV: 57.6° x 44.8°
- GSD @ 38m (125 ft): 0.45cm
- GSD @ 120m (200 ft): 1.43cm
- Focal Length: 27mm
Shutter: Global
Pixel Size: 3.2um
Dimensions: 6.35cm x 6.3m x 10.64cm (2.50" x 2.48" x 4.19")
Weight: 330 grams (including lens)
Power: 9-26V Input, 12W Typical
Frame Rate: 3 fps
Image Format: JPEG
Storage: 512 GB Internal PCIe NVMe
Interfaces:
USB-C
Gigabit Ethernet
UART
- Digital I/O
- Input Pulse/PWM for Image Capture
- Input Pulse Per Second (PPS) for Time/Position Sync
- Output Pulse for Image Exposure Sync
Features:
Integrated IMU
Pushbutton Trigger Option
Gremsy VIO F1
The Vio series offers advanced lightweight EO/IR payload technology for industrial applications. It features a 4K zoom sensor, a 640x512 radiometric thermal camera, and an integrated 2400m laser rangefinder, providing exceptional performance in a compact design.
Powerful Zoom Camera
With 20x optical zoom, 30x super resolution zoom, and a 240x combined maximum zoom. Capture stunning 4k footage at 30 fps with the 8.51 MP 1/2.5” CMOS sensor. Adjust the focal length from 4.4mm to 88.4mm to get the perfect shot every time.
Radiometric Thermal Camera
With 1x to 8x zoom capability. Featuring a fixed focus with a 32° horizontal field of view and a 14mm effective focal length, this camera delivers exceptional thermal imaging quality. With a resolution of 640x512@60hz and a thermal sensitivity of = 50 mk, it provides clear and precise thermal imagery for a wide range of applications.
Laser Rangefinder
The laser rangefinder is a precision instrument capable of measuring distances from 0 to 2400m at a rate of 1Hz, and from 0 to 1200m at a rate of 10Hz. It offers high precision, with accuracy ranging from 0.1m to 0.5m, making it ideal for applications where precise distance measurements are essential.
EO/IR Object Tracking
Easily auto-tracks and auto-centers your selected object, ensuring it remains perfectly framed even while zooming or adjusting the gimbal position.
YellowScan Vx-20 LiDAR
The Vx20 series is the ultimate solution for high-altitude projects requiring rapid data processing. As the most precise system in the Vx series, it offers unparalleled accuracy and performance.
With the Vx20 series, you can achieve the highest accuracy levels, surpassing that of the Vx series with an accuracy of less than 2.5cm.
Fly higher and gather more detailed data with the Vx20 series, reaching altitudes of up to 120m compared to 90m with the Vx15 series. Its increased performance in roll, pitch, and heading angle measurements ensures precise and reliable data collection.
Designed to be versatile, the Vx20 series can be easily mounted on various UAVs, including multirotor, fixed-wing, or helicopter drones, thanks to its lightweight construction.
This system is ideal for a wide range of applications, particularly those in civil engineering that require sharp and accurate data descriptions.
Key Features:
AGL Altitude: 120m (394ft)
System Precision: 1cm (0.4")
System Accuracy: 2.5cm (1")
Battery Weight (excluding): 2.85kg (6.3lbs)
YellowScan Mapper LiDAR
Embark on your LiDAR journey with our user-friendly Mapper system. This LiDAR system redefines easy mapping with its low weight, mid-range capability, top-end point density, and advanced accuracy and precision, offering unmatched value for money.
Designed for Compatibility
The Mapper system is designed to fit seamlessly with any UAV, whether it's a multirotor, fixed-wing, or helicopter drone. Mounting is effortless with the Gremsy and DJI Skyport integrations or our custom-made mounting bracket, enabling quick setup for immediate mapping.
Enhanced Field Productivity
Achieve optimal productivity by maintaining a balanced flight speed of 10 m/s for optimal point density. With this setup, you can cover up to 10 hectares in just 3 minutes, flying at 70m AGL, 10 m/s, with 40% sidelap.
Built to Last
No need to worry about adverse weather conditions. The Mapper's IPW55 protection ensures it can withstand rain, allowing you to land safely and continue your mission without interruption.
Key Features:
- AGL Altitude: 70m AGL (230ft)
- System Precision: 4cm (1.6")
- System Accuracy: 4cm (1.6")
- Battery Weight (excluding): 1.3kg (2.9lbs)
Riegl Vux-120 LiDAR
The RIEGL VUX-120 sets a new standard in lightweight, versatile airborne laser scanning technology. With a wide field of view of 100 degrees and an incredibly high pulse repetition rate of up to 2.4 MHz, this scanner is tailor-made for high point density corridor mapping applications.
The VUX-120 emits its measuring beam in three directions: strictly nadir, +10 degrees forward, and -10 degrees backward. This unique feature ensures unrivaled data capture completeness, especially in challenging environments with vertical surfaces and narrow canyons.
This scanner boasts an internal data storage capacity of 2 TByte and a removable CFast card, along with interfaces for the integration of an external IMU/GNSS system and up to two optional external cameras. Its versatile design allows for seamless integration on UAS/UAV/RPAS, small manned aircraft, and helicopters.
The RIEGL VUX-120²³ is not just a standalone UAV LiDAR sensor; it also comes in various fully-integrated UAV-based laser scanning system configurations, complete with an appropriate IMU/GNSS system and optional cameras. This versatility ensures that the scanner meets all the specific requirements of the customer's applications.
Main Applications:
- Corridor Mapping: Power Line, Railway Track, and Pipeline Inspection
- Topography in Open-Cast Mining
- Surveying of Urban Environments
- Archaeology and Cultural Heritage Documentation
- Agriculture & Forestry
The VUX-120²³ is equipped with cutting-edge RIEGL technology, including echo signal digitization, multiple target capability, online waveform processing, and multiple-time-around processing. Its compact and lightweight design, along with its ability to scan nadir, forward, and backward, ensures the completeness of scan data even on vertical structures and in narrow canyons.
Key Features:
- Laser Pulse Repetition Rate: Up to 2.4 MHz
- Measurement Rate: Up to 2,000,000 measurements per second
- Scan Speed: Up to 400 lines per second
- Operating Flight Altitude: Up to 720 m / 2,350 ft
- Field of View: Up to 100°
- Weight: 2.3 kg / 4.4 lbs
