AIRCRAFT

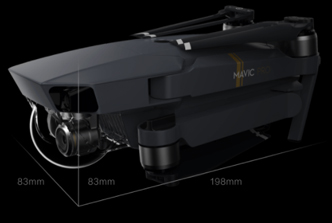

Folded: H83mm x W83mm x L198mm
Diagonal Size (Propellers Excluded): 335 mm
Weight (Battery & Propellers Included): 1.62 lbs (734 g) (exclude gimbal cover)>br>
1.64 lbs (743 g) (include gimbal cover)
Max Ascent Speed: 16.4 ft/s (5 m/s) in Sport mode
Max Descent Speed: 9.8 ft/s (3 m/s)
Max Speed: 40 mph (65 kph) in Sport mode without wind
Max Service Ceiling Above Sea Level: 16404 feet (5000 m)
Max Flight Time: 27 minutes (no wind at a consistent 15.5 mph (25 kph))
Max Hovering Time: 24 minutes (no wind)
Overall Flight Time: 21 minutes ( In normal flight, 15% remaining battery level )
Max Total Travel Distance (One Full Battery, No Wind): 8 mi (13 km, no wind)
Operating Temperature Range: 32° to 104° F (0° to 40° C)
Satellite Positioning Systems: GPS / GLONASS

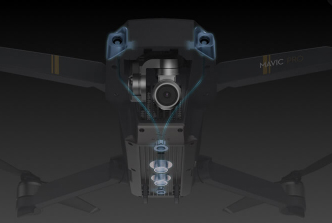

Hover Accuracy Range Vertical:
+/- 0.1 m (when Vision Positioning is active) or +/-0.5 m
Horizontal:
+/- 0.3 m (when Vision Positioning is active) or +/-1.5 m
Operating Frequency FCC:
2.4-2.4835GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
CE:
2.4-2.4835GHz; 5.725-5.850 GHz
SRRC:
2.4-2.4835 GHz;5.725-5.850 GHz
Transmitter Power (EIRP): 2.4GHz
FCC:<=26 dBm; CE: <=20 dBm; SRRC:<=20 dBm; MIC:<=18 dBm
5.2 GHz
FCC:<=23 dBm
5.8 GHz
FCC:<=23 dBm; CE <=13 dBm; SRRC: <=23 dBm; MIC: -
REMOTE CONTROLLER
Operating Frequency: 2.4 GHz to 2.483 GHz
Max Transmission Distance: FCC Compliant: 4.3 mi (7 km);
CE Compliant: 2.5 mi (4 km)
SRRC Compliant: 2.5mi (4 km)
MIC Compliant: 2.5 mi (4 km) (Unobstructed, free of interference)
Operating Temperature Range: 32° to 104° F ( 0° to 40° C )
Battery: 2970mAh
Transmitter Power (EIRP) FCC:<=26 dBm
CE:<=20 dBm
SRRC: <=20 dBm
MIC: <=18 dBm
Operating Current/Voltage: 950mA @ 3.7V
Supported Mobile Device Size: Thickness Supported:6.5-8.5mm
Max length: 160mm
Supported USB port types: Lightning, Micro USB(Type-B),USB(Type-C)™
CAMERA
Sensor: 1/2.3” (CMOS), Effective pixels:12.35 M (Total pixels:12.71M)
Lens: FOV 78.8° 28 mm (35 mm format equivalent) f/2.2
Distortion: < 1.5% Focus from 0.5 m to 8
ISO Range: Video: 100-3200
Photo: 100-1600
Electronic Shutter Speed: 8s -1/8000 s
Image Size: 4000×3000
Still Photography Modes:
- Single shot
- Burst shooting: 3/5/7 frames
- Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7
- EV Bias
- Interval
Video Recording Modes:
- C4K: 4096×2160 24p
- 4K: 3840×2160 24/25/30p
- 2.7K: 2720x1530 24/25/30p
- FHD: 1920×1080 24/25/30/48/50/60/96p
- HD: 1280×720 24/25/30/48/50/60/120p
Max Video Bitrate: 60 Mbps
Supported File Systems: FAT32 ( = 32 GB ); exFAT ( > 32 GB )
Photo: JPEG, DNG
Video: MP4, MOV (MPEG-4 AVC/H.264)
Supported SD Cards: Micro SD™
Max capacity: 64 GB. Class 10 or UHS-1 rating required
Operating Temperature Range: 32° to 104° F ( 0° to 40° C )

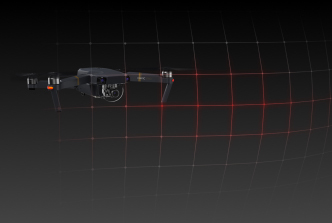

VISION SYSTEM
Vision System Forward Vision System
Downward Vision System
Obstacle Sensory Range: Precision measurement range: 2 ft (0.7 m) to 49 ft (15 m) Detectable range: 49 ft (15 m) to 98 ft (30 m)
Operating Environment Surface with clear pattern and adequate lighting (lux > 15)
Velocity Range: =22.4 mph (36 kph) at 6.6 ft (2 m) above ground
Altitude Range: 1 - 43 feet (0.3 - 13 m)
Operating Range: 1 - 43 feet (0.3 - 13 m)
GIMBAL
Controllable Range Pitch: -90° to +30°
Roll: 0° or 90° (Horizontally and vertically)
Stabilization: 3-axis (pitch, roll, yaw)
INTELLIGENT FLIGHT BATTERY
Capacity: 3830 mAh
Voltage: 11.4 V
Battery Type: LiPo 3S
Energy: 43.6 Wh
Net Weight: Approx.0.5 lbs(240 g)
Charging Temperature Range 41° to 104° F ( 5° to 40° C )
APP / LIVE VIEW
Mobile App: DJI GO 4
Live View Quality:
[email protected],
[email protected](Remote Controller)
[email protected](Wi-Fi)
[email protected],
[email protected] (DJI Goggles)
Latency 160-170ms (depending on conditions and mobile device)
Required Operating Systems
iOS 9.0 or later
Android 4.1.2 or later
WI-FI
Operating Frequency: 2.4G/5G
Max Transmission Distance: 80 m(Distance), 50m(Height) (Unobstructed, free of interference)
Max Speed: 14 km/h (9 mph)
Max Ascent Speed: 6.6 ft/s(2 m/s)
Max Descent Speed: 3.3 ft/s(1 m/s)
CHARGER
Voltage: 13.05 V
Rated Power: 50 W
