DJI Mavic 2 Pro

New Features on the DJI Mavic 2 Pro
- Hasselblad L1D-20c Camera
- 10-bit Dlog-M Colour Profile
- 10-bit HDR Video
- 20 Megapixel 1 inch CMOS Sensor
- Adjustable Aperture, f/2.8 – f/11
- Iconic Image Quality
- Up to 8 km 1080p Video Transmission
- Up to 31-minute Flight Time
- Omnidirectional Obstacle Sensing
- ActiveTrack 2.0
- Compatible with DJI Goggles Series


OcuSync 2.0 Digital Video Transmission System
- 8 km 1080p Live Video
- 2.4/5.8 GHz Real-Time Auto-Switching
- 40 Mbps Download Speed
- 120 ms Low Latency

Fly Faster, Longer and Quieter!
- 31-minute flight time (currently the longest flight time for a consumer drone)
- 44 mph max speed in Sport Mode (no wind conditions)
- Featuring DJI low-noise flight technology

Omnidirectional Obstacle Sensing
- Featuring obstacle sensors on all sides of the aircraft
- Advanced Pilot Assistance Systems (APAS) allows the aircraft to actively avoid obstacles in front of and behind it
- Additional Bottom Auxiliary Light for low-light conditions, assisting the downward sensors

*Omnidirectional Obstacle Sensing includes right/left, up/down and forward/backward obstacle sensing. Sensors for left/right directions is only available in ActiveTrack or Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. Left/right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when ActiveTrack or Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.

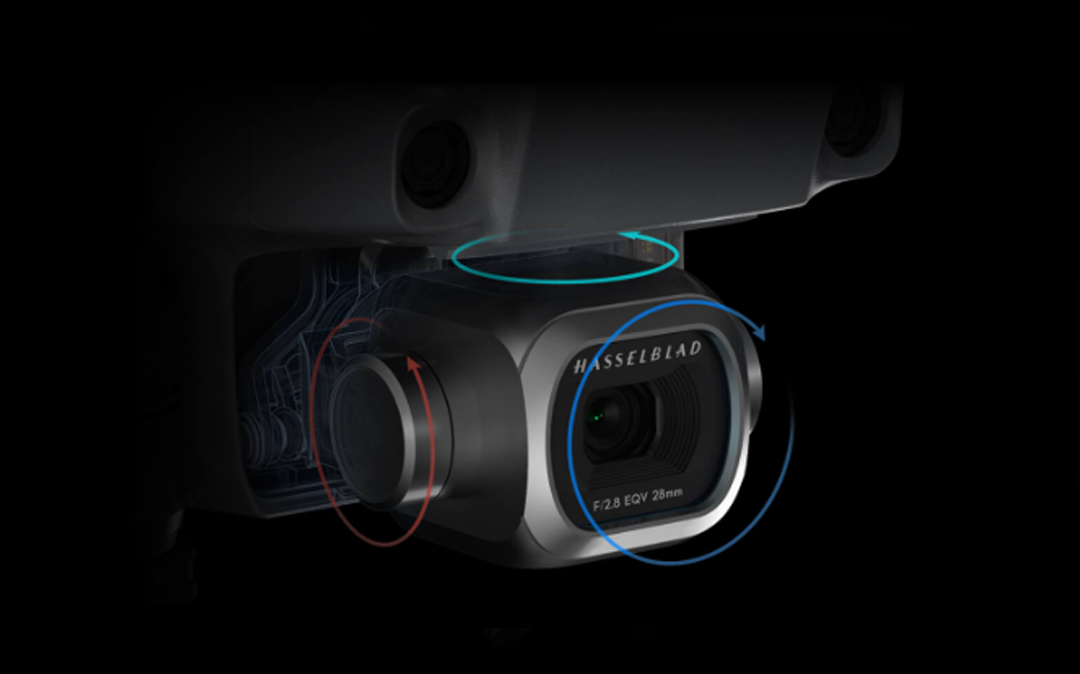

3-Axis Gimbal
The DJI Mavic 2 Pro’s 3-axis gimbal provides smooth and stable footage in any situation.


DJI Mavic 2 Pro and Hasselblad Camera
Manufactured in Sweden, Hasselblad cameras are world renowned for their iconic ergonomic design, uncompromising image quality and Swedish craftsmanship. Since 1941 Hasselblad cameras have been used to capture some of the world's most iconic moments. This even includes the first moon landing!
Co-engineered in partnership with Hasselblad after two long years of tireless research, the DJI Mavic 2 Pro comes fully equipped with the all-new Hasselblad L1D-20c camera, which possesses Hasselblad's unique Hasselblad Natural Colour Solution (HNCS), giving users the ability to capture gorgeous 20-megapixel aerial shots in unrivaled color and detail.

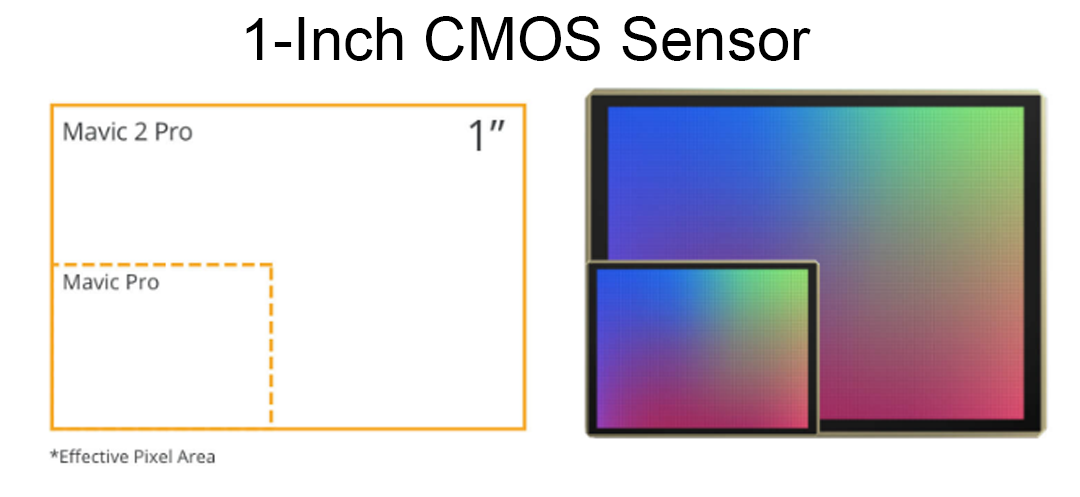

One Inch CMOS Sensor
The brand new one inch CMOS sensor has an active sensing area four times more effective than the original DJI Mavic Pro! It now captures more information in every pixel, resulting in better dynamic range, better signal-to-noise ratio and higher low-light performance.
New 10-bit Dlog-M Color Profile
The DJI Mavic 2 Pro supports a 10-bit Dlog-M color profile that yields a higher dynamic range for much more flexibility in the grading room.

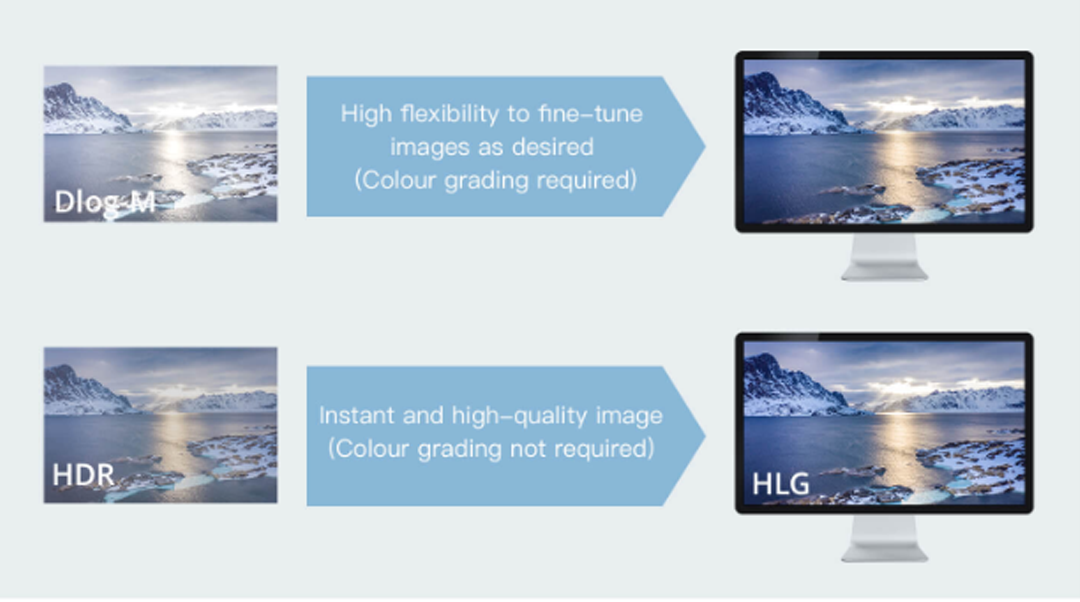

10-bit HDR Video
With 4K 10-bit HDR support, the DJI Mavic 2 Pro can be connected to a 4K television with HLG and immediately play back footage with perfect color tones. This includes brighter highlights and increased contrast.


Adjustable Aperture
An f/2.8-f/11 adjustable aperture gives you much more flexibility when dealing with different light conditions.


Hyperlapse
With Hyperlapse, the Mavic 2 Pro and Mavic 2 Zoom shoot stable aerial shots and process them automatically. JPEG and RAW photos can be simultaneously saved on a MicroSD, leaving more room for post editing.
Task Library
The Task Library feature allows you to save flight paths so you can capture the same exact scene at different times.


Enhanced HDR Imagery
A new and improved HDR algorithm blends a sequence of photos for higher dynamic range (HDR) and less unwanted artificial artifacts.


HyperLight
HyperLight photos provide a low-light setting to enhance images while greatly reducing noise.


H.265 Codec for Higher Quality
Both the DJI Mavic 2 Pro and Mavic 2 Zoom support the highly advanced H.265/HEVC codec. You can now maintain 50% more information compared to videos in H.264/AVC.


ActiveTrack Version 2.0
With the new improvements of both hardware and software, ActiveTrack 2.0 provides a new tracking experience on a higher level.
Precise Recognition: Previously, ActiveTrack 1.0 relied mainly on 2D images from the main camera to track a target. With ActiveTrack 2.0, the DJI Mavic 2 Pro maps a 3D view of the environment through the main camera and forward dual vision sensors for amazing recognition and accuracy.
Avoiding Obstacles: While tracking a subject, the DJI Mavic 2 Pro can plan a flight path on it's 3D map. It will read, recognize and avoid any obstacles or obstructions in front of and behind it. This all takes place without any interruption on camera.

MAVIC 2 PRO CAMERA

Sensor: 1” CMOS
Effective Pixels: 20 million

Lens:
FOV: about 77°
35 mm Format Equivalent: 28 mm
Aperture: f/2.8–f/11
Shooting Range: 1 m to 8

ISO Range
Video:
100-6400
Photo:
100-3200 (auto)
100-12800 (manual)

Shutter Speed Electronic Shutter: 8–1/8000s
Still Image Size: 5472×3648
Still Photography Modes:
Single shot
Burst shooting: 3/5 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval (JPEG: 2/3/5/7/10/15/20/30/60s RAW:5/7/10/15/20/30/60s)

Video Resolution
4K: 3840×2160 24/25/30p
2.7K: 2688x1512 24/25/30/48/50/60p
FHD: 1920×1080 24/25/30/48/50/60/120p

Max Video Bitrate: 100Mbps

Color Mode: Dlog-M (10bit), support HDR video (HLG 10bit)

Supported File System:
FAT32 (= 32 GB)
exFAT (> 32 GB)

Photo Format: JPEG / DNG (RAW)
Video Format: MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)


AIRCRAFT

Takeoff Weight: Mavic 2 Pro: 907 g

Dimensions:
Folded: 214×91×84 mm (length×width×height)
Unfolded: 322×242×84 mm (length×width×height)

Diagonal Distance: 354 mm
Max Ascent Speed:
5 m/s (S-mode)
4 m/s (P-mode)

Max Descent Speed:
3 m/s (S-mode)
3 m/s (P-mode)
Max Speed (near sea level, no wind): 72 kph (S-mode)
Max Service Ceiling Above Sea Level: 6000 m
Max Flight Time (no wind): 31 minutes (at a consistent 25 kph)
Max Hovering Time (no wind): 29 minutes
Max Flight Distance (no wind): 18 km (at a consistent 50 kph)
Max Wind Speed Resistance: 29–38 kph

Max Tilt Angle:
35° (S-mode, with remote controller)
25° (P-mode)
Max Angular Velocity: 200°/s
Operating Temperature Range: -10°C - 40°C

Operating Frequency:
2.400 - 2.483 GHz
5.725 - 5.850 GHz

Transmission Power (EIRP):
2.400 - 2.483 GHz
FCC:=26 dBm
CE:=20 dBm
SRRC:=20 dBm
MIC:=20 dBm
5.725-5.850 GHz
FCC:=26 dBm
CE:=14 dBm
SRRC:=26 dBm

GNSS: GPS+GLONASS

Hovering Accuracy Range
Vertical:
± 0.1 m (when vision positioning is active)
± 0.5 m (with GPS positioning)
Horizontal:
± 0.3 m (when vision positioning is active)
± 1.5 m (with GPS positioning)
Internal Storage: 8 GB


REMOTE CONTROLLER

Operating Frequency: 2.400 - 2.483 GHz; 5.725 - 5.850 GHz
Max Transmission Distance (unobstructed, free of interference):
2.400 - 2.483 GHz; 5.725 - 5.850 GHz
FCC: 8000 m
CE: 5000 m
SRRC: 5000 m
MIC: 5000 m

Operating Temperature Range: 0? - 40?

Transmission Power (EIRP):
2.400 - 2.483 GHz
FCC: =26 dBm
CE: =20 dBm
SRRC: =20 dBm
MIC: =20 dBm
5.725-5.850 GHz
FCC: =26 dBm
CE: =14 dBm
SRRC: =26 dBm

Battery: 3950 mAh

Operating Current/Voltage: 1800 mA ? 3.83 V
Supported Mobile Device Size: Max length: 160 mm; max thickness: 6.5–8.5 mm
Supported USB Port Types: Lightning, Micro USB (Type-B), USB-C


GIMBAL

Mechanical Range: Tilt: -135–45° Pan: -100–100°
Controllable Range: Tilt: -90–30° Pan: -75–75°
Stabilization: 3-axis (tilt, roll, pan)
Max Control Speed (tilt): 120° /s
Angular Vibration Range:
±0.01° (Mavic 2 Pro)
±0.005° (Mavic 2 Zoom)


SENSING SYSTEM

Sensing System: Omnidirectional Obstacle Sensing
Forward:
Precision Measurement Range: 0.5 - 20 m
Detectable Range: 20 - 40 m
Effective Sensing Speed: = 14m/s
FOV: Horizontal: 40°, Vertical: 70°

Backward:
Precision Measurement Range: 0.5 - 16 m
Detectable Range: 16 - 32 m
Effective Sensing Speed: = 12m/s
FOV: Horizontal: 60°, Vertical: 77°

Upward:
Precision Measurement Range: 0.1 - 8 m
Downward:
Precision Measurement Range: 0.5 - 11 m
Detectable Range: 11 - 22 m

Sides:
Precision Measurement Range: 0.5 - 10 m
Effective Sensing Speed: = 8m/s
FOV: Horizontal: 80°, Vertical: 65°
Operating Environment:
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)


CHARGER
Input: 100-240 V, 50/60 Hz, 1.8A
Output:
Main: 17.6 V ? 3.41 A
or 17.0 V ? 3.53 A USB: 5 V?2 A
Voltage 17.6 ± 0.1 V
Rated Power 60 W


INTELLIGENT FLIGHT BATTERY

Capacity: 3850 mAh
Voltage: 15.4 V
Max Charging Voltage: 17.6 V
Battery Type: LiPo 4S
Energy: 59.29 Wh
Net Weight: 297 g
Charging Temperature Range: 5? - 40?
Max Charging Power: 80 W


SUPPORTED SD CARDS

Supported SD Cards:
Micro SD™
Supporting Micro SD with capacity up to 128 GB and R/W speed up to UHS-I Speed Grade 3

Recommended microSD Cards:
32G
Sandisk V30
Sandisk Extreme V30 Pro
64G
Sandisk Extreme Pro V30
128G
Sandisk Extreme V30
Sandisk Extreme Pro V30
Kingston


APP

Video Transmission System: OcuSync 2.0
Name: DJI GO 4
Live View Quality:
Remote Controller:
[email protected] / [email protected]
DJI Goggles:
[email protected] / [email protected] DJI Goggles RE:
[email protected] / [email protected]
Latency (depending on environmental conditions and mobile device): 120 - 130 ms
Max Live View Bitrate: 40Mbps
Required Operating System: iOS 9.0 or later Android 4.4 or later

1 - DJI Mavic 2 Pro Aircraft
1 - Remote Controller
1 - Intelligent Flight Battery
1 - Charger
1 - Power Cable
1 - RC Cable (Lightning Connector)
1 - RC Cable (Standard Micro USB Connector)
1 - RC Cable (USB Type-C Connector)
1 - Gimbal Protective Cover
1 - Communication Cable (USB 3.0 Type-C)
1 - USB Adapter*
1 - RC Cable Slider (Large)*
1 - Spare Control Sticks (Pair)*
2 - RC Cable Slider (Small)*
3 - Propeller (Pair)
